Pneumatic Glue Spreader

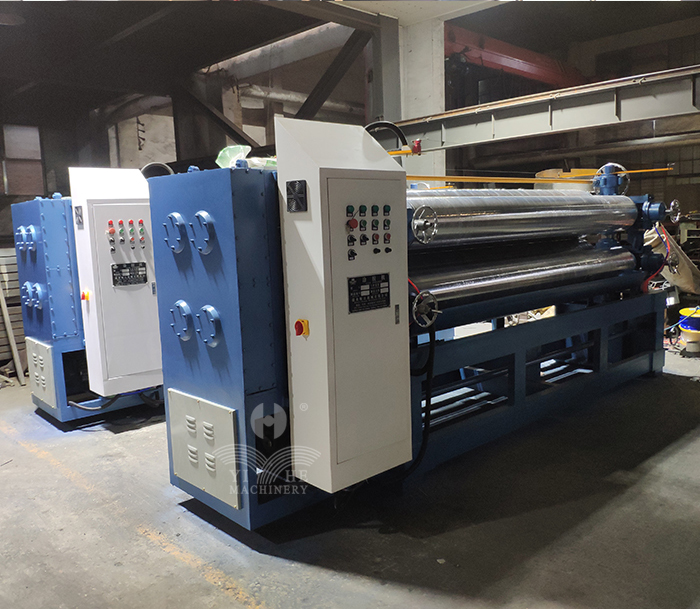

The pneumatic glue spreader machine is mainly used for glue coating of core veneers and wood-based panels such as multi-layer board, lamination board/plywood, block board, etc. It can be customized according to client's requirement. It is produced with reasonable design, glue coating averagely, saving cost, easy operation and lower price.

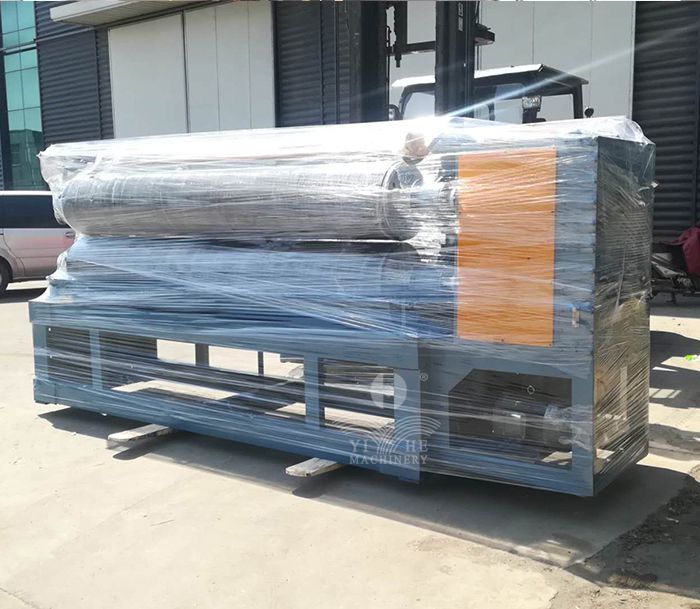

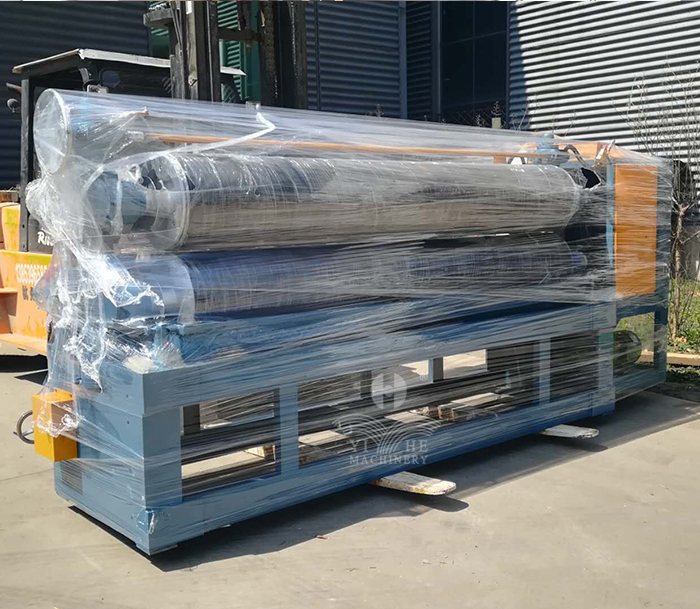

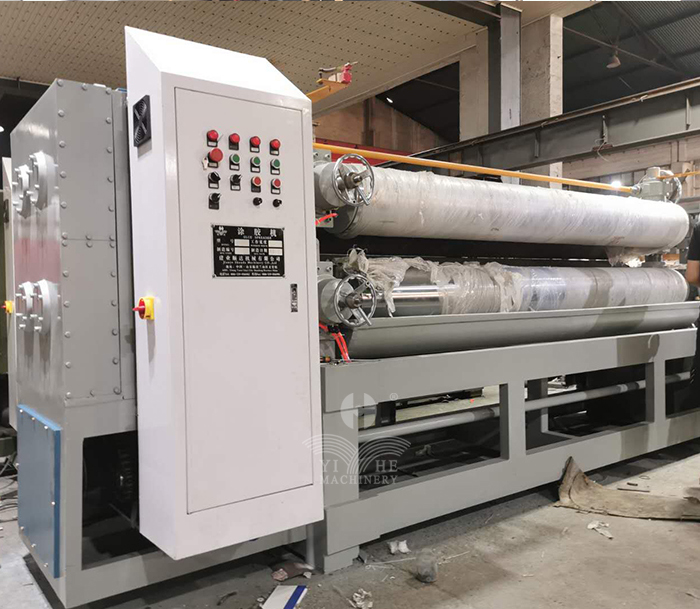

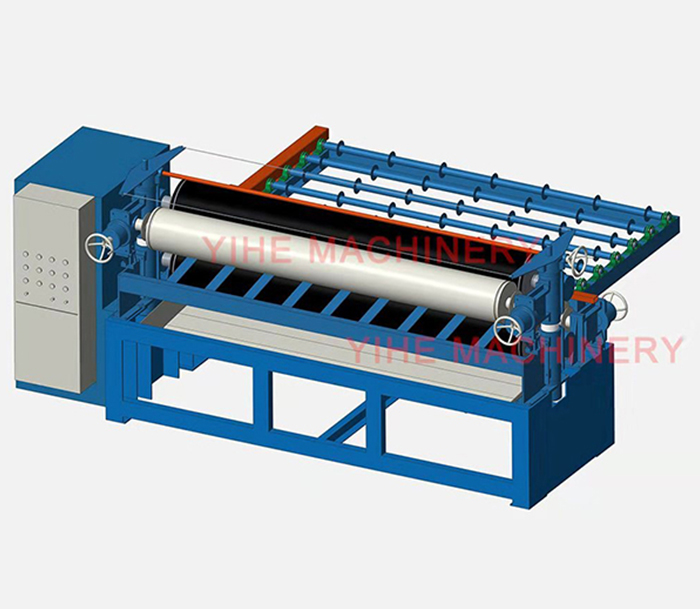

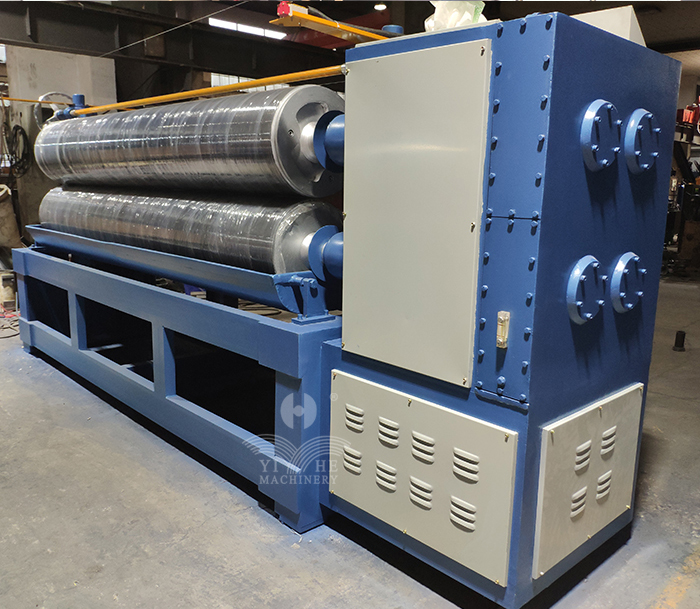

8ft pneumatic glue spreader (3).jpg8ft pneumatic glue spreader (4).jpg8ft pneumatic glue spreader (2).jpg
8ft pneumatic glue spreader (1).jpg8ft pneumatic glue spreader (5).jpg8ft pneumatic glue spreader (6).jpg


Share
Features:

1. The safety device is able to immediate stop the machine whenever the danger occurred.

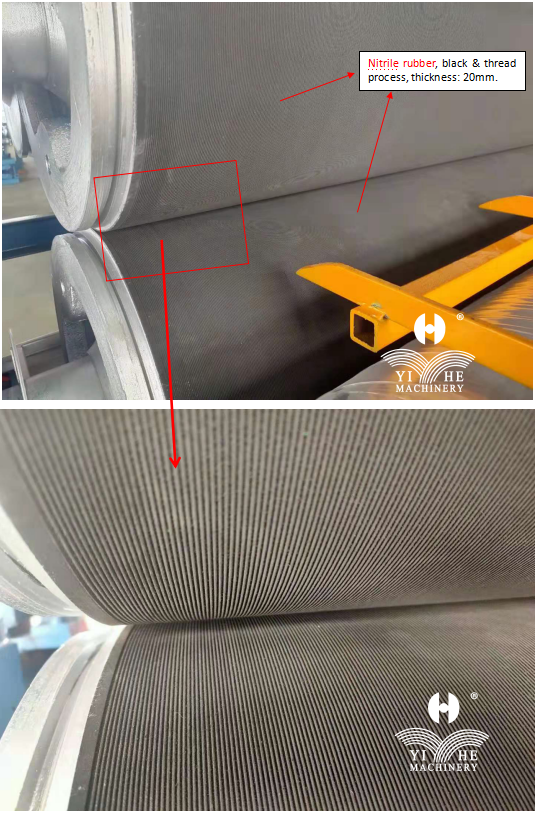

2. Making rubber roller with the high quality nitrile rubber, the squeeze roller is chromate treatment seamless steel pipe, the roller surface is

    covered by stainless steel, never has the rust bec of glue  corrosion.

3. Glue more evenly, higher productivity, save glue, save staff and save cost.

4. Easy to operate, easy to adjust the amount of glue, more efficiency.

5. No trace of glue, it is the preferred equipment for veneer.

Technical parameters:

Model Number:

YHGSP8

Roller quantity:

4pcs

Working speed:

adjustable

Diameter of glue coating roller:

420mm WITH THREADING

Length of glue coating roller:

2700mm

Diameter of glue squeeze roller:

300mm

Length of glue squeeze roller:

2700mm

Power of motor:

7.5KW

Max. Veneer thickness:

30mm

Max. Veneer width:

2700mm

Overall size:

4400*1600*1900mm

Machine's weight:

5000KGS

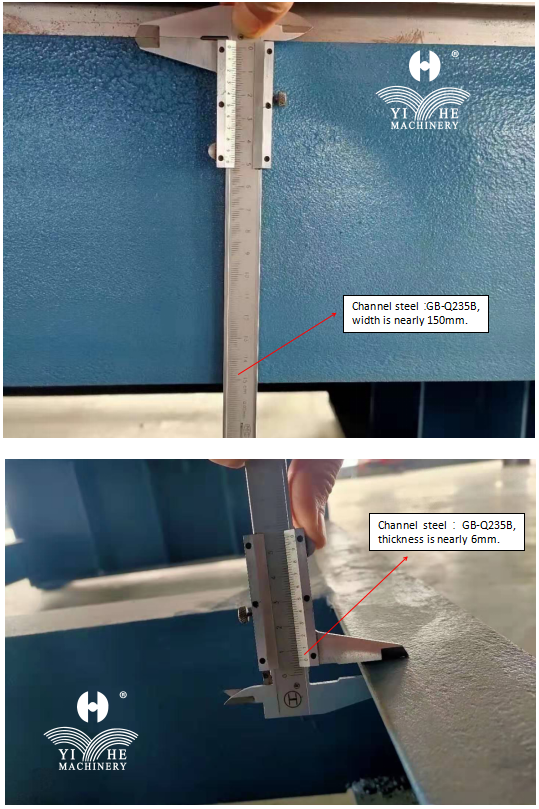

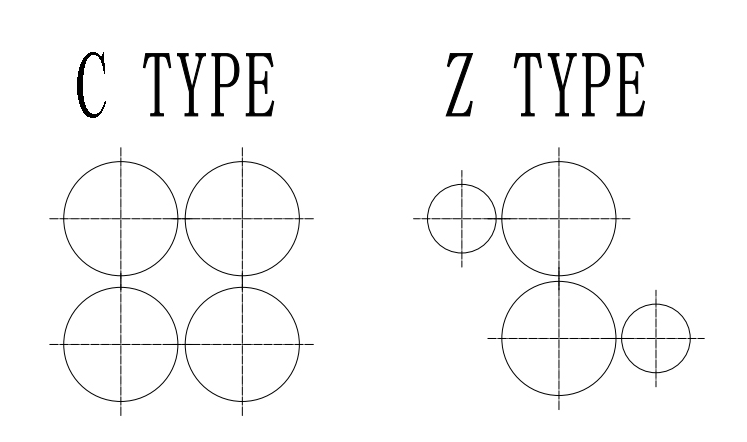

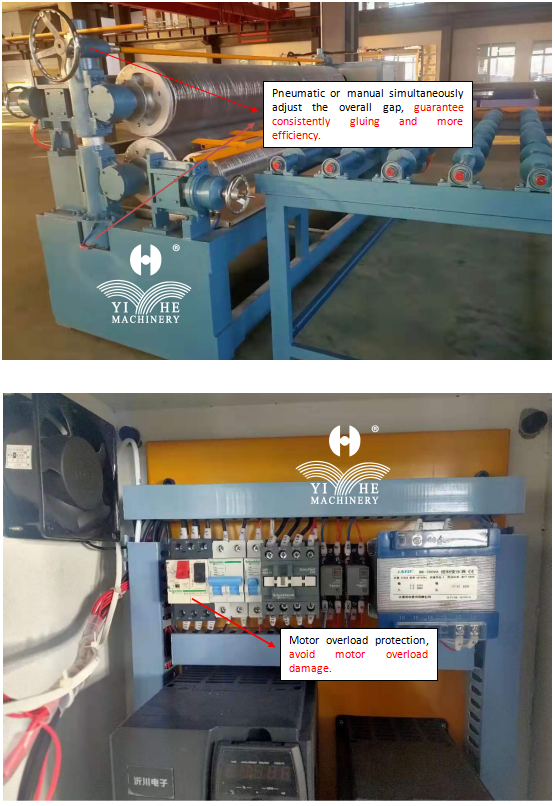

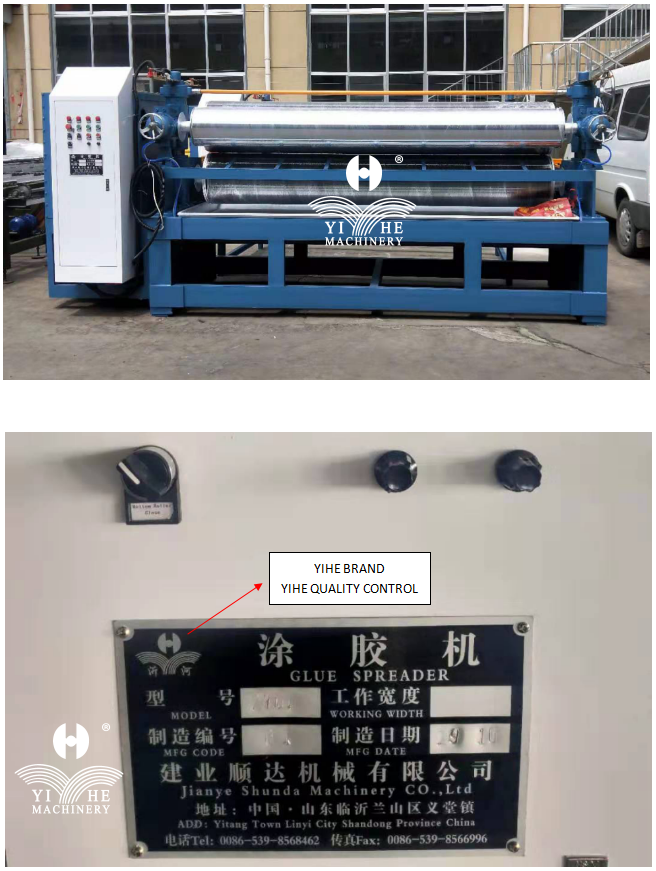

MACHINE STRUCTURE DETAIL:
