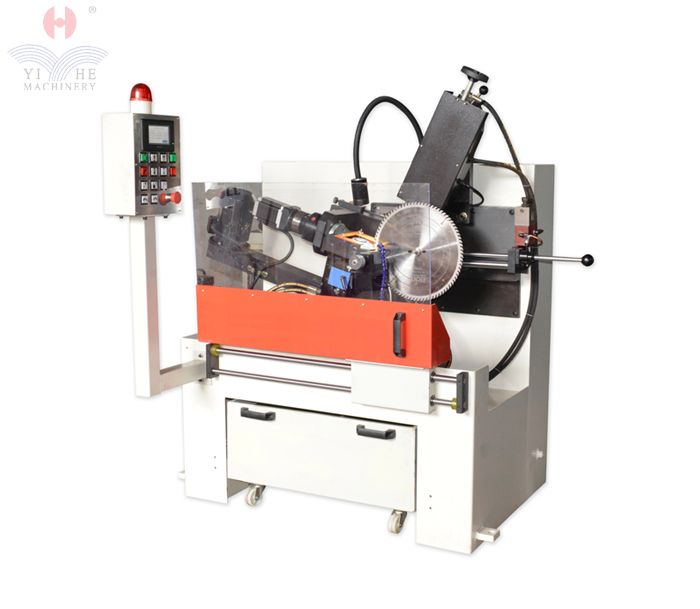

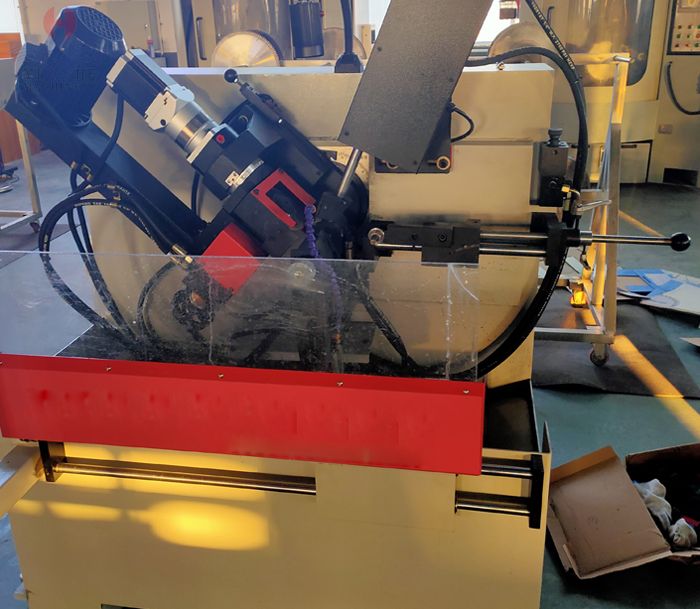

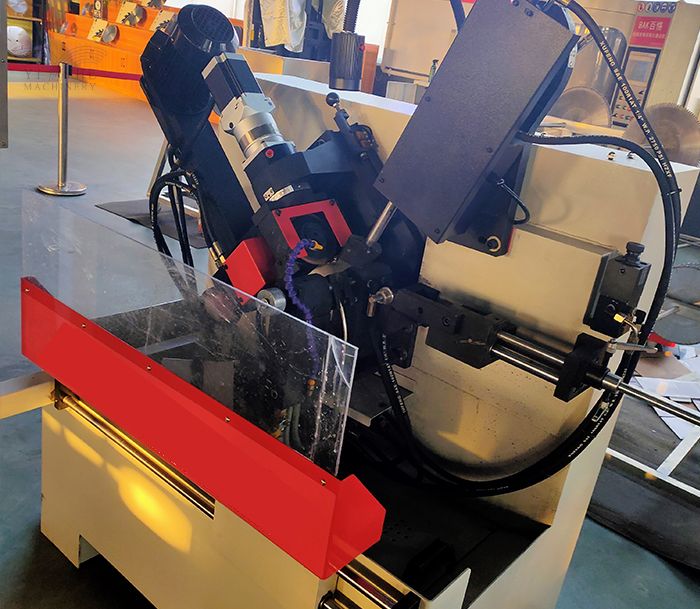

Automatic Angle Front and Back Angle Teeth Grinding Machine

This equipment is suitable for furniture factory woodworking saw blade, with scraper multi chip saw blade, aluminum alloy factory saw blade grinding, the diameter of phi 80- phi 800 between the alloy circular saw blade grinding, simple operation, can be fully extended carbide circular saw life, each piece can be reused for 15-30 times, this equipment has been a lot of buyers.

Share
  • product details
  • video
Features:

1. It can be used for the diameter of phi 80- phi 800 between the alloy circular saw blade grinding.
2. Operation easily, it alse can be fully extended carbide circular saw life.
3. Each piece saw blade can be reused for 15-30 times.

Technical parameters:

Diameter range of saw blade:

Ø80 - Ø800mm

Diameter of saw center hole:

Ø10-220mm

Saw blade body thickness:

1-7mm

Pitch:

5-100mm

Angle of tooth surface:

1°-45°

Dorsal horn of tooth:

2°-45°

Left and right slope:

1°-45°

Grinding head stroke range:

up to 28mm, adjustable

Grinding speed:

0.5-6mm/s

Working speed:

up to 20 teeth/min

Grinding wheel size:

Ø125*Ø32mm

Negative chamfering:

-20°

Rotary angle of grinding head:

90°,180°

Grinding wheel speed:

5600R/min

Flow rate of water pump in coolant:

50L/min

Coolant cylinder volume:

85L

Total power:

3kw

Voltage:

380V/3P

Mechanical weight:

700kg

Size:

1200*1100*1800mm
