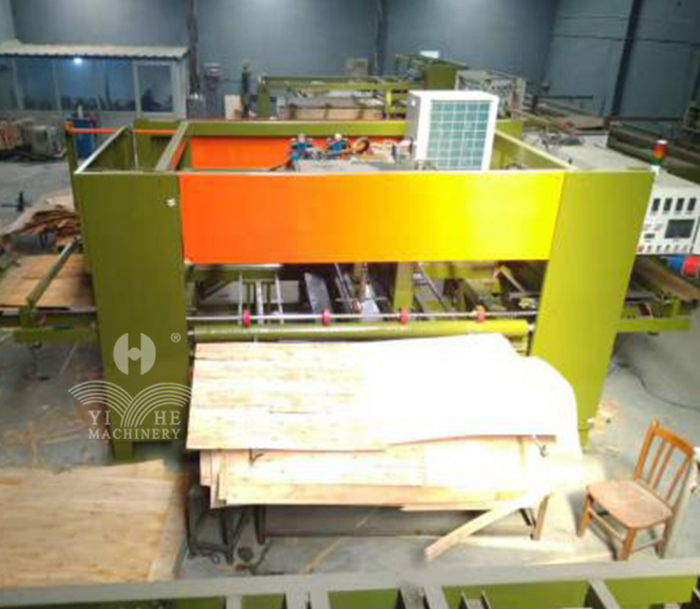

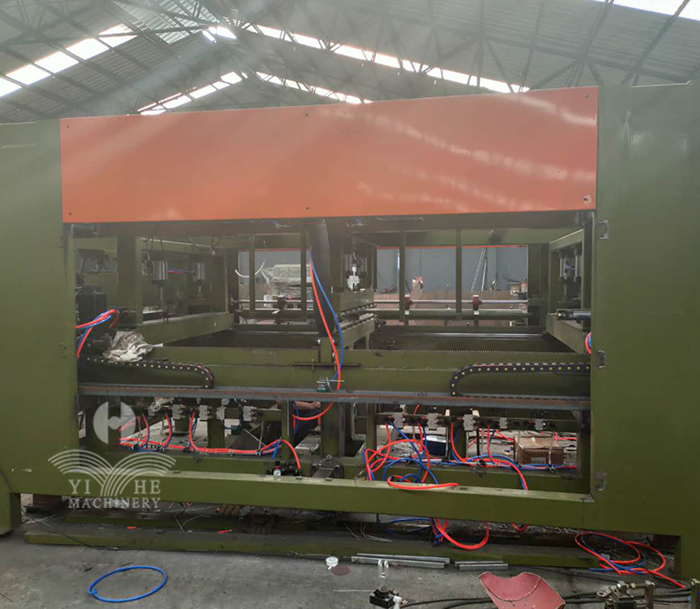

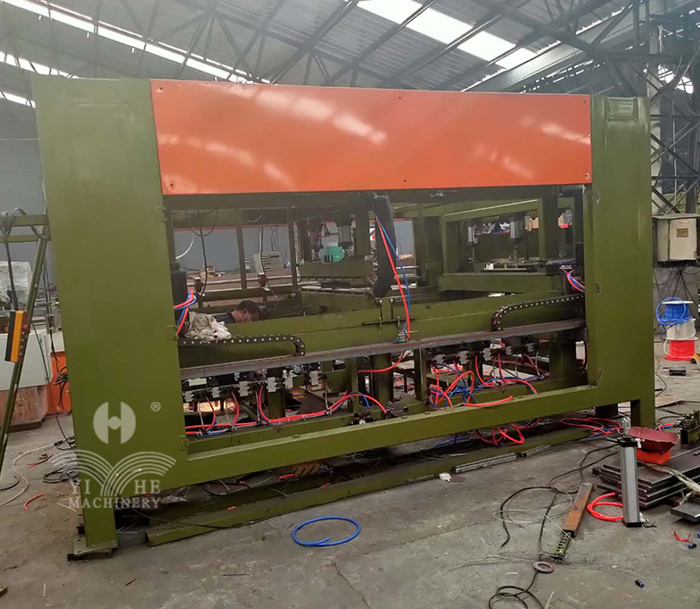

Wood Veneer Finger Joint Machine

Vertical core veneer composer machine, vertical veneer core tooth composer machine

After veneer rotary cutting and drying, the medium veneer with different length, uneven thickness, regular or irregular thickness of 1.2-3.6mm is first composed into 4*4 feet by core veneer composer, then entered from two sides of the machine through the full-automatic operation of the machine. Teeth making、Gluing、Teeth alignment、Pressing、Cooling、Stripping and stacking are completed automatically. The whole process, the veneer is composed into the whole long and medium veneer as the user’s required size(8*4ft).

veneer finger joint machine.jpgveneer finger jointing machine.jpgveneer finger jointer (1).jpgveneer finger joint composer machine.jpg


Share
Features:

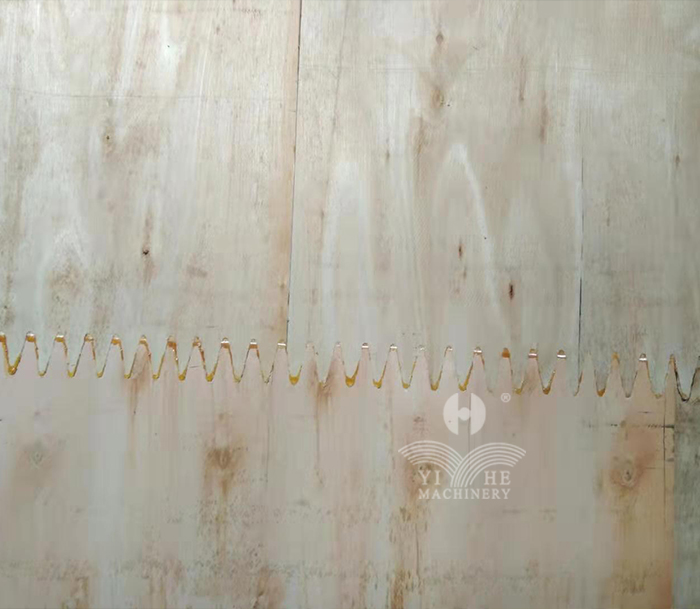

1. this machine function is used to joint the vore veneer from the vertical direction,

2. this machine can finish the jointing work automatically, can save more time and improve the efficiency.


Technical parameters:

Driver:

Servo

Dimension:

6500mm*2550mm*2550mm

Total power:

18.85kw

Veneer thickness:

1.2-3.6mm

Feeding veneer size:

4’x4’

Finished veneer size:

4’x8’

Efficiency:

3-4pcs/minute

Floor area:

23m2

Weight:

5000kg

PLC:

TAIWAN DELTA PLC

Display:

TAIWAN Weinview

Electric parts:

Schneider

Left veneer driver:

Invt servo motor 3.8kw

Right veneer driver:

Invt servo motor 3.8kw

Veneer tooth driver:

GUOMAO motor 7.5kw

Veneer transfer driver:

GUOMAO motor 0.75kw

Lifting table driver:

Motor + reducer 3kw

Air conditioner:

1.5p ac

Veneer lifting table:

Included

Veneer counter:

Included

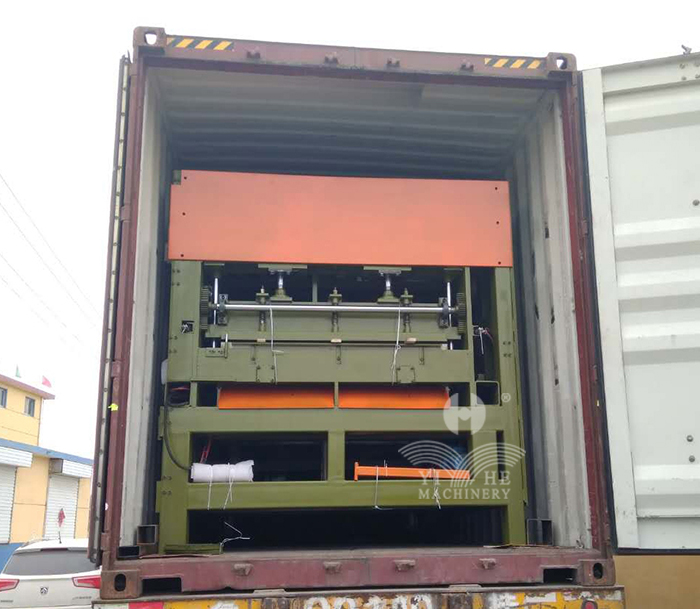

Container:

1x40’HC is needed, 2meters length space will be left.

Electric power is needed, no need connect to boiler.

Hot melt granules is needed, one bag 25kg can joint 3000pcs 4’x8’ veneer.
