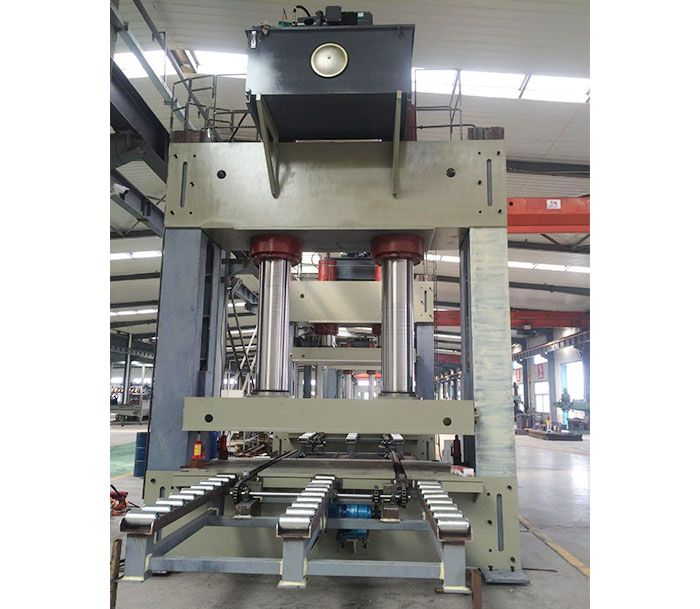

1. The main frame adopts high-quality national standard steel plate to be welded at one time. Simple but strong structure, reasonable design, great rigidity, big undertaking strength.
2. The use of domestic high-quality oil cylinders, the main components are selected imported hydraulic parts, to ensure a long service life.
3. The use of automatic hydraulic control system, precise pressure control, short pressurization cycle, high working efficiency.
Pressure | 400-600T |
Board feeding direction | Transverse |
Layer | 1 |
Layer space | 1800mm |
Working table size | 1370*2700MM |
Cylinder stroke | 1050mm |
Cylinder | Ø320MM*2PCS |
Power | 11KW |
Overall dimension | 3550*1370*4200MM |
Total weight | 13000KGS |
Working method | Automatic |
Composite frame | Assembled |
Upper and bottom beam | 900mm |
Middle beam | 400mm |
Frame thickness | 35mm |
