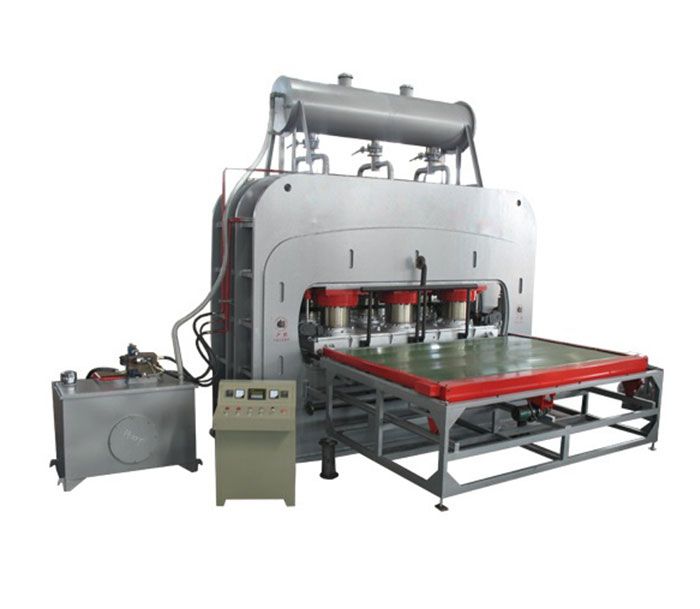

Short Cycle Melamine Lamination Line

This short cycle press lamination hot press machine mainly used to do the lamination for furniture board, laminated flooring and decorative material. This machine mainly divided into: single(double) side lamination press with overhead oil cylinder, single side lamination press with bottom cylinder, laminated flooring press machine and wood profiles face lamination press machine. This machine can be equipped with several kinds of stainless steel plate for high-glossy, matte, S.F., embossing pattern’s pressing lamination. Regarding laminated flooring press machine, pressure range: 1400T-3200T, we can design working size and specification according to your different board size.

Inquire Now None

product details
video

Features:

1. Machine frame all cut by CNC, after combined, high precision, stable performance, and high efficiency in production.

2. Hydraulic system, equipped with quick closing device, air cooling or water cooling system, main machine is equipped with FULL-SOLID wuxi cylinder.

3. Set high performance heat insulation material between cylinder and hot platen, extending cylinder’s working life.

4. Hot press machine is equipped with same-time closing device, cylinder go up and down stably, positioning with high precision.

5. Controlling panel use imported brand electrical parts, PLC brand: Mitsubishi, Delta, Omron...etc for selection.

Technical parameters:

Model	Total pressure KN	Cylinder diameter mm	Cylinder quantity	Closing time/second	Appliable board size(WxL in mm)
GSCL/1200T	12000	Φ320	6	≤1.5	4X8ft, 4x9ft, 5x8ft, 6x8ft, 6x9ft, 7x8ft, 7x9ft, 6x12ft
GSCL/1400T	14000	Φ340	6	≤1.5
GSCL/1600T	16000	Φ320	8	≤1.5
GSCL/1800T	18000	Φ340	8	≤1.5
GSCL/2000T	20000	Φ360	8	≤1.5
GSCL/2400T	24000	Φ400	8	≤1.8
GSCL/2800T	28000	Φ420	8	≤1.8
GSCL/3200T	32000	Φ440	8	≤2
