4FT Single Power Spindless Veneer Peeling Machine

It is main equipment of core veneer production and mainly used to rotary peel the eucalyptus, poplar, birch, rubber and other fast-growing wood, and also can peel the left wood log already processed by spindle peeling machine. It is normal model veneer peeling machine and the max. wood log processing diameter is 600mm. Min. diameter of the wood core after peeling is 28mm because of spindleless.

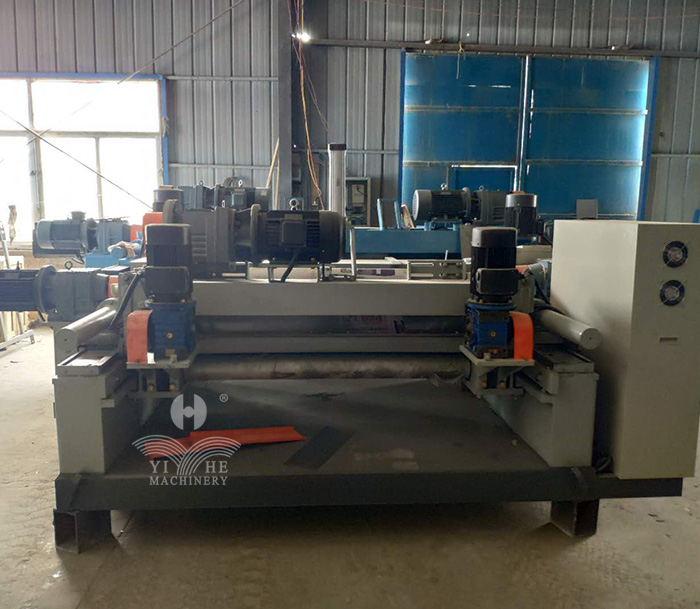

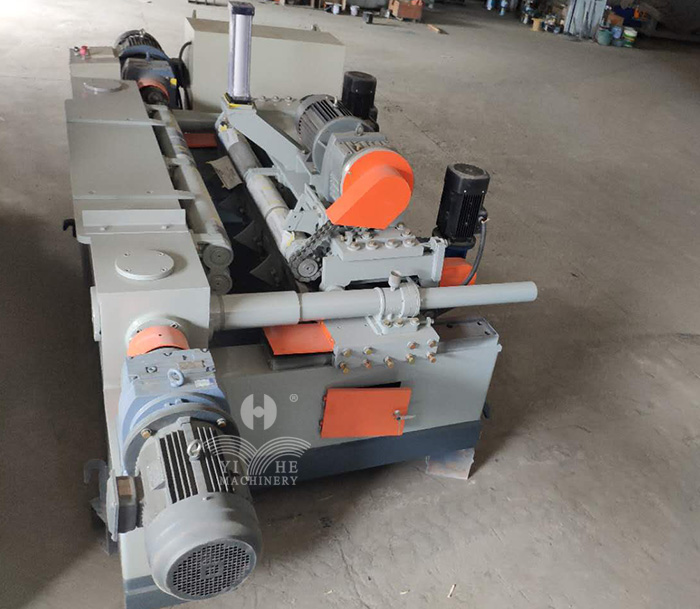

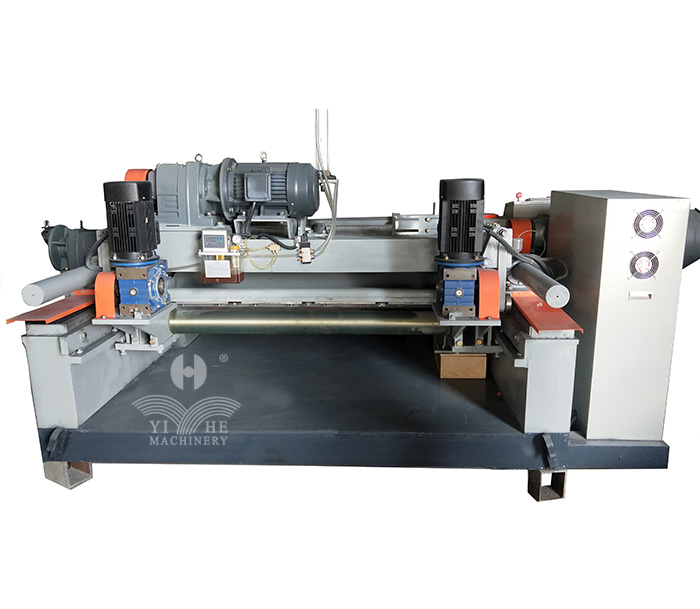

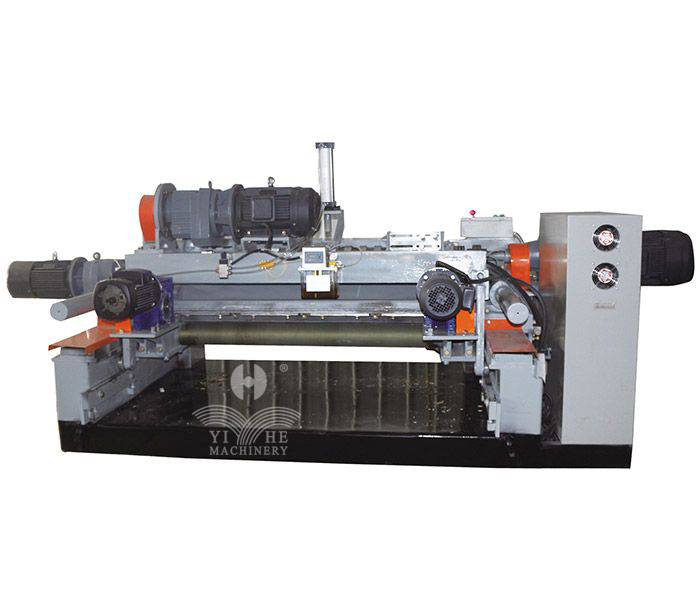

4ft Single Power Spindleless Peeling Machine (1).jpg4ft Single Power Spindleless Peeling Machine (2).jpg4ft Single Power Spindleless Peeling Machine (3).jpg4ft Single Power Spindleless Peeling Machine (4).jpg




Share
Features:

1. Euipped with automatic lubrication system, ensure machine running stable, so the using life of the machine is extended.

2. Feeding system is designed into leading screw and screw nut which is made from alloy.

This design guarantee feeding system synchronizing go forward and backward, so the veneer is in same thickness and smooth surface.

3. The linear speed of host machine is fixed and can’t be adjustable.

4. Min. diameter of the wood core after peeling is 28mm, can max. help our client save wood log material.


Technical parameters:

Model No.:

YPM/4S

YPM/4DCNC

Wood length:

900-1300mm

900-1300mm

Wood diameter:

Φ80-Φ550mm

Φ80-Φ550mm

Knife blade length:

1500mm

1500mm

Thickness of veneer peeler:

0.8-4.0mm

0.8-4.0mm

Linear speed of host machine:

45m/min

45m/min

Double roller diameter:

118mm

118mm

Single roller diameter:

118mm

118mm

Double roller motor power:

11kw

11kw

Single roller motor power:

7.5kw

4kw*2pcs

Cutting knife motor power:

1.5kw

1.5kw

Rubber roller motor power:

1.5kw

1.5kw

Feeding motor power:

7.5kw

7.5kw

Veneer conveyor motor power:

1.5kw

1.5kw

Total power:

30.5kw

31kw

Total weight:

4500kg

4550kg

Machine dimension:

4500*1600*1380mm

4500*1600*1380mm
